Product by Application

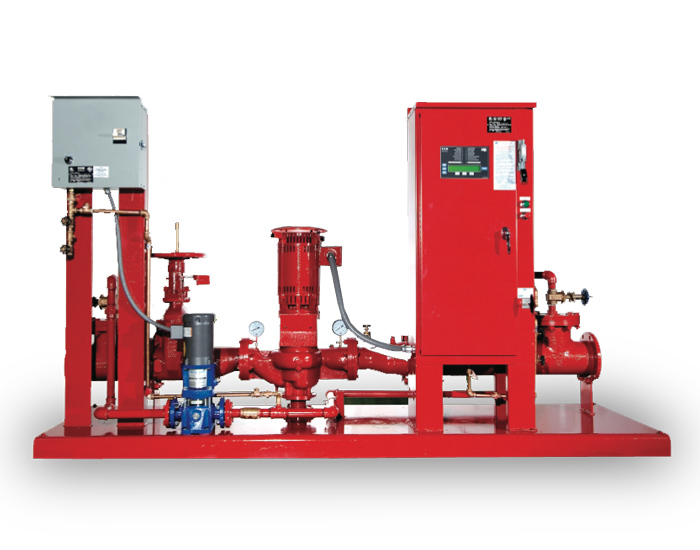

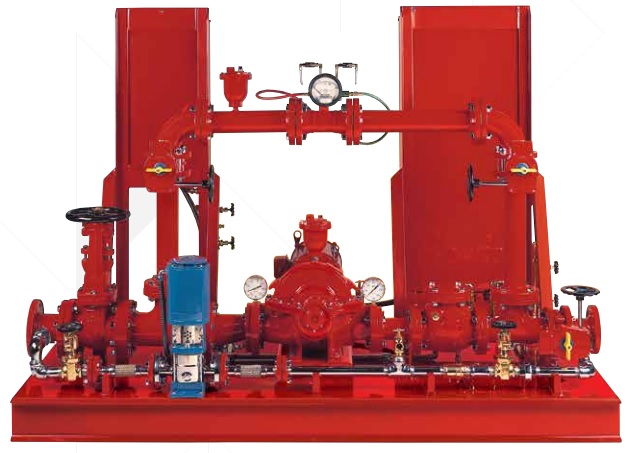

Fairbanks Nijhuis offers a complete fire pump system that has a small footprint, ideal for buildings with limited space. This pre-engineered system is factory assembled and ready to start, with only base grouting and pipe and power connections to be completed at site.

KEY FEATURES
• UL Listed/FM Approved Fairbanks Nijhuis Fire Pump
• UL Listed/FM Approved Fire Pump Controller
• ETL Listed Packaged Fire Pump System
• Aurora Jockey Pump
• UL Listed Jockey Pump Controller
• Pressure Sensing Lines Complete per NFPA 20
• Listed OS & Y Gate & Butterfly Valves
• Suction and Discharge Piping per NFPA 20
• Ideal for Smaller Areas - Fits through a 36" Doorway

Back to top

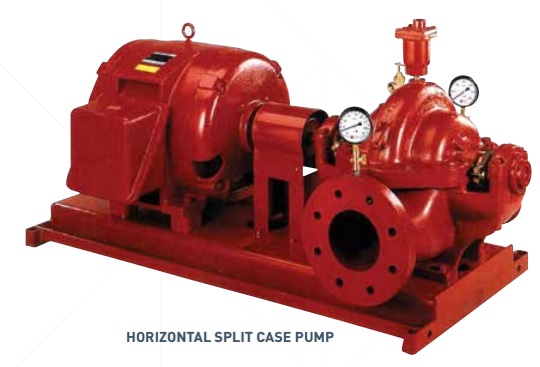

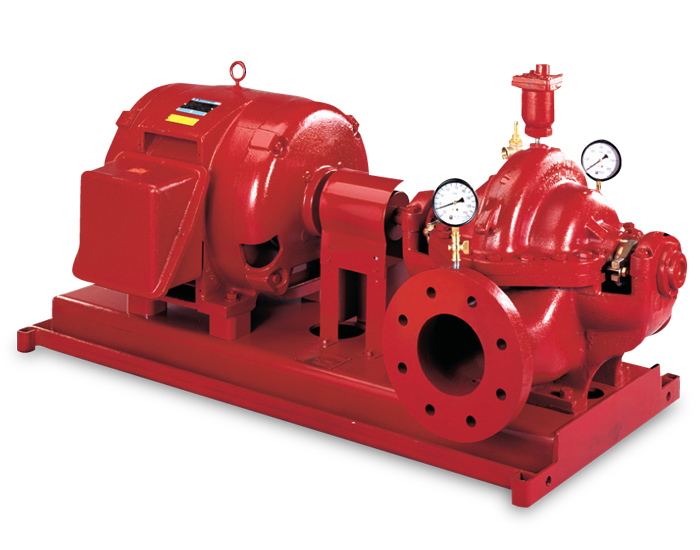

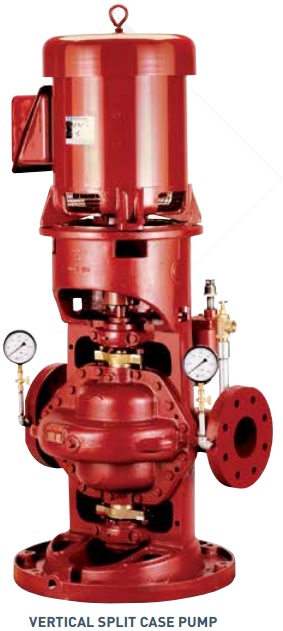

Picture details: Model 1800F, 2800F, 5800F, 5900F and HGT
Fairbanks Nijhuis supplies split case fire pumps that meet NFPA, EN, VAS and APSAD standards in full, as well as being UL listed, FM and VdS approved. Fire pump sets are available with electric motor, diesel engine or hydraulic motor driver. Every pump is subjected to a thorough inspection and a series of tests to ensure that it meets the required specifications before leaving the factory.

KEY FEATURES
• Complete compact unit
• Horizontal or Vertical Configurations
• Tailored to the customer's required standards and specifications
• Configuration for NFPA20 / FM / UL up to 7,000 US gpm (1,590 m3/hr)
• Good suction characteristics, also with higher speeds
• Practically no limitations on flow
• Less wear and tear influences
• Easy maintenance without interfering on piping / driver
• Select Models Available in alternate materials with FM approval

Back to top

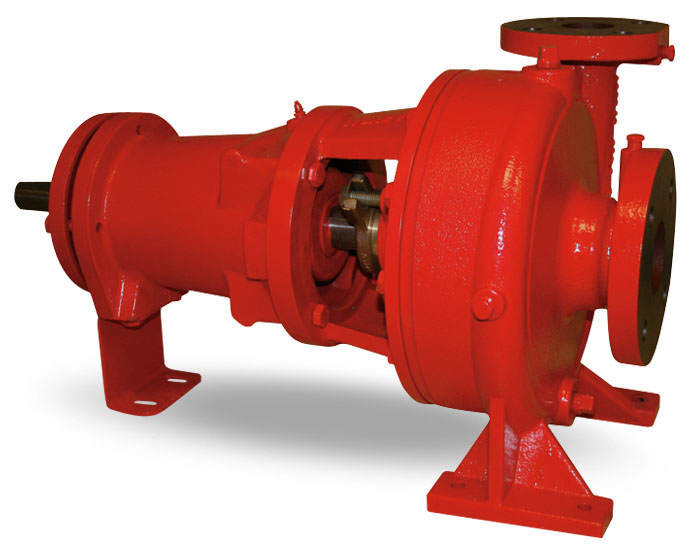

Picture Details: Model 1620F Series

KEY FEATURES
• UL Listed, FM Approved Performance
• Electric and Diesel Speeds
• Back Pullout Design for Easy Pump Service without Disconnecting Pipe
• Frame-Mounted Design
• Small Footprint Ideal for Retrofit
• Designed for Installations such as Schools, Office Buildings, and Hospital

Back to top





Picture Details: Model 1590F Series
Big and small, Fairbanks Nijhuis has a fire pump to meet your requirements.

KEY FEATURES
• Capacities: 50 to 1500 GPM (11 to 340 m3/hr)
• UL Listed/FM Approved Pressures: 40 to 160 PSI (276 to 1,100 kPa) UL Listed/FM Approved
• Serves warehouses, industrial plants, shopping centers, nursing homes, schools, general industry, power plants, high-rise buildings, distribution centers, government installations, manufacturing plants, and more

Back to top

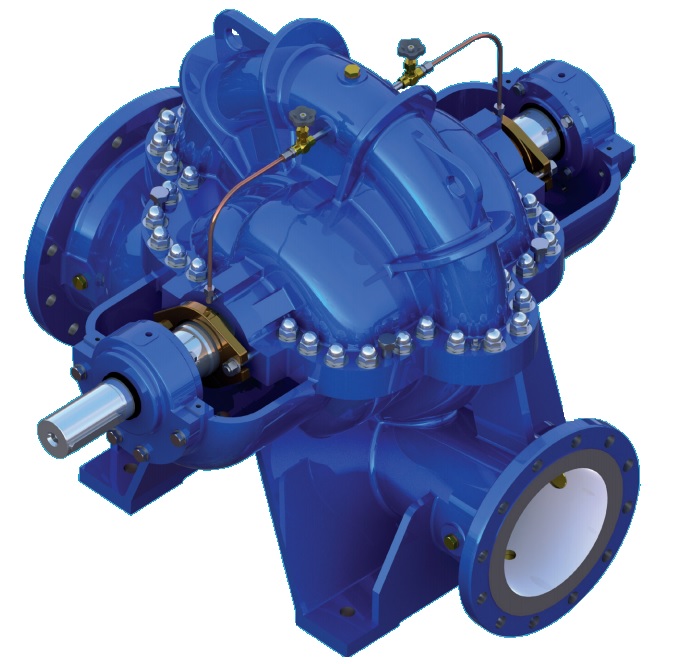

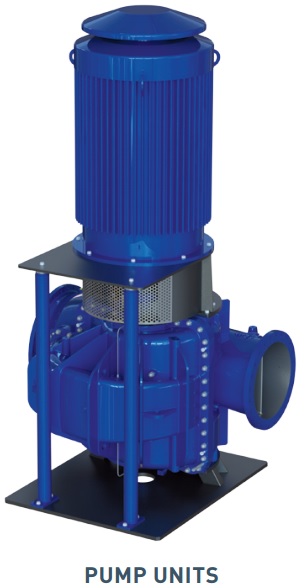

Picture Details: Model HGTF Series
Fairbanks Nijhuis Fire Protection offers a range of pumps for installation on board of fire fighting vessels. These pumps are specially constructed in accordance with the latest class I, II and III Fi-Fi requirements with certification according to Lloyd's, ABS, BV, DNV and others.
Pentair has a pumping program that is specifically designed for this application, resulting in good performance, compact design, reaching to minimum space requirements.

KEY FEATURES
• Capacity: 880 - 22,014 GPM (200 - 5,000 m³/h)
• Head: up to 656 feet (200 mlc)
• Several casing materials

Back to top

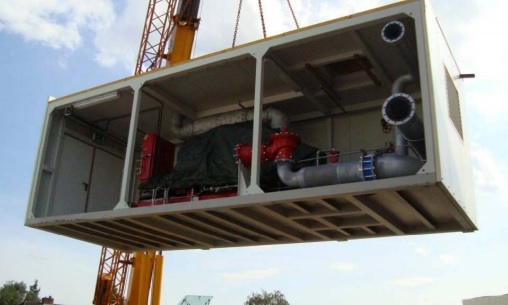

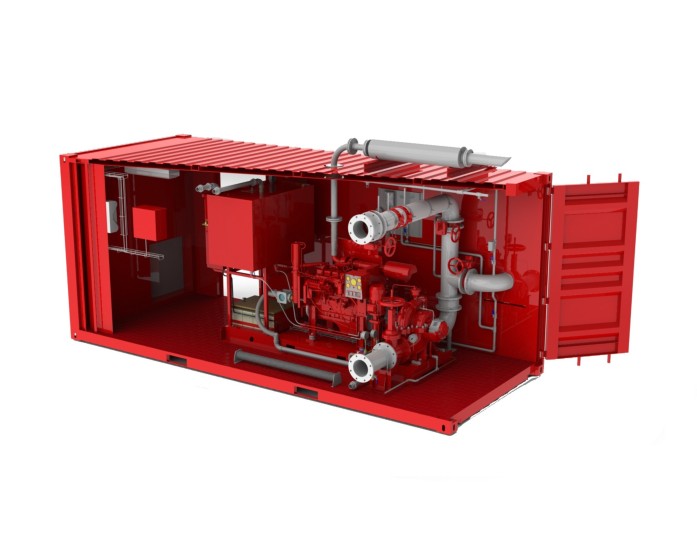

Fairbanks Nijhuis Fire Protection offers a complete pump room engineering service based on fire fighting and customer specifications. We also supply materials and supervise installation in the pump room.
Customers benefit from years of obtained on-site experience. We are familiar with the latest and extremely specific fire fighting standards and guarantee that the pump rooms are fully compliant with these standards.

KEY FEATURES
• •Complete pump installations in a pump room, pump house or container
• •Containerized unit completely assembled, suitable for (immediate) operation
• •Easy transportation of containerized unit to location of installation
• •Suitable for any climate or site condition
• •Horizontal split case, vertical in-line and vertical turbines available
• •Packaged fire pump systems provide single source system responsibility and can help eliminate many potential field installation interface problems.

Back to top

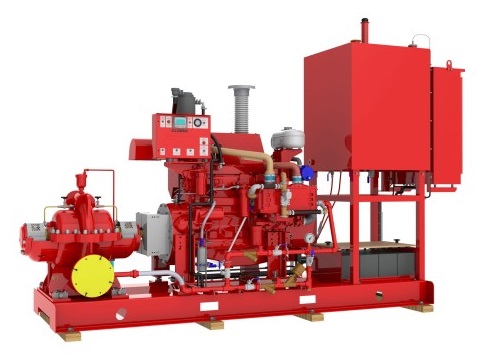

Picture Details: Model 1800F, 2800F, 5800F, 5900F and HGT
Fairbanks Nijhuis supplies split case fire pumps that meet NFPA, EN, VAS and APSAD standards in full, as well as being UL listed, FM and VdS approved. Fire pump sets are driven by a diesel engine. Every pump is subjected to a thorough inspection and a series of tests to ensure that it meets the required specifications before leaving the factory.

KEY FEATURES
• Complete compact unit tailored to the customer's required standards and specifications
• Configuration for NFPA20 / FM / UL up to 7,000 US gpm (1,590 m3/hr)
• Good suction characteristics, also with higher speeds
• Practically no limitations on flow
• Less wear and tear influences
• Easy maintenance without interfering on piping / driver
• Select Models Available in alternate materials with FM approval

Back to top

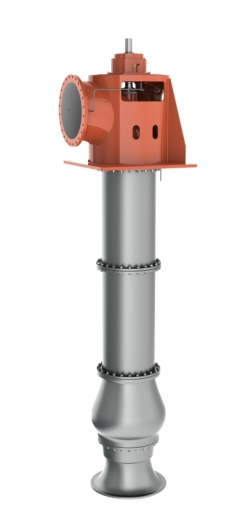

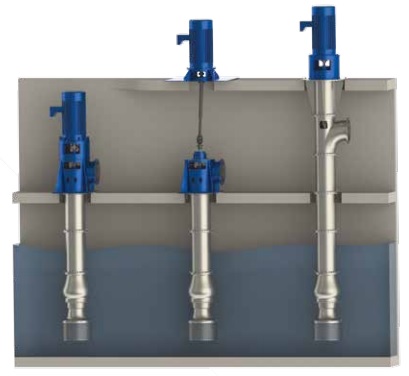

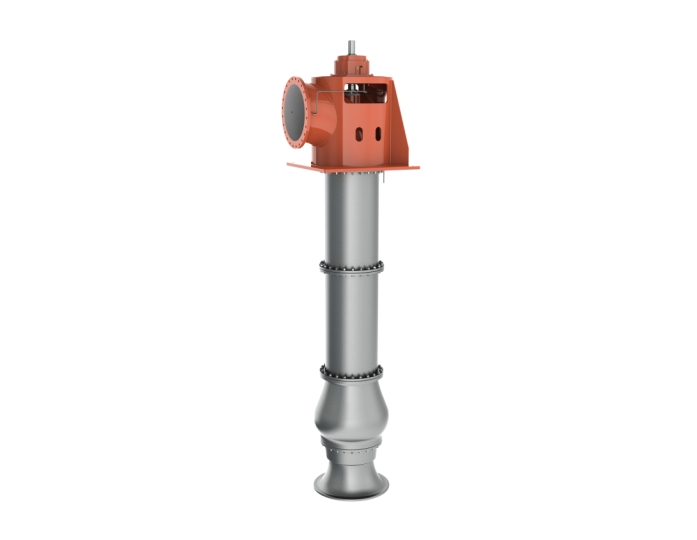

Fairbanks Nijhuis is a leader in providing End Suction , Split Case, Vertical In-Line and Vertical Turbine pumps to meet the demanding needs of our customer. Fire pump sets are available with electric motor, diesel engine or hydraulic motor driver. Every pump is subjected to a thorough inspection and a series of tests to ensure that it meets the required specifications before leaving the factory.

KEY FEATURES
• Complete compact unit
• Tailored to the customer's required standards and specifications
• Configuration for NFPA20 / FM / UL
• Unlimited suction characteristics (by pump setting)
• Practically no limitations on flow
• No above ground (water) tank required
• Used for fresh water or any surface water
• Easy maintenance without interfering on piping / driver
• Available in several materials, including FM approval

Back to top







Picture Details: Model VDF Series
The Fairbanks Nijhuis vertical turbine pump is an energy efficient and reliable pump, suitable for various liquids and applications. The pump is available with either a dry or submersible motor installation, both in a wide range of flow rates, pressure heads and construction materials.
The hydraulic design includes a suction bell, single or multiple pump stages with closed or open mixed flow impellers, column pipes with integrated line-shafts, and a discharge elbow that can be located either above or below the foundation level.

KEY FEATURES
• Capacity: 220 - 66043 GPM (50 - 15,000 m3/h)
• Head: 82 1,197 feet (25 - 365 mlc)
• High efficiency and durability
• Wide operating range
• Minimal maintenance requirements
• Wide range of materials
• Variety of shaft seal configurations and bearings

Back to top

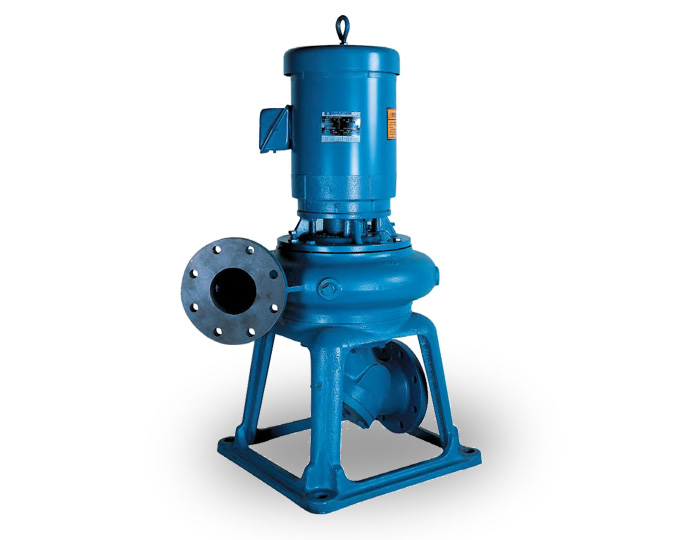

Picture Details: Model 5430 Series
Fairbanks Nijhuis vertical solids handling pumps have over 100 years of proven experience in the pumping of solids, slurries, sludge, pulp, trash, sewage, and grit. These pumps are specifically designed to pass solids, trash, and long stringy materials

KEY FEATURES
• Capacities: 15 to 8,300 GPM (3 to 1,855 m3/hr)
• Heads: 5 to 300 ft (1.5 to 91 m)
• Discharge Sizes from 2" to 10" in Diameter
• Bladeless Impellers With 2" thru 10" (51 to 254 mm) discharge sizes - capable of passing 10% to 25% more solids, long stringy material, and trash than a conventional two-vane impeller
• Lengthened Shaft Life
• Reduced Maintenance and Downtime Costs
• Smooth, Quiet and Troublefree Installation
• Constructed of Cast Iron Volutes and Impellers

Back to top




Picture Details: Model 1600 Series
Liquid handling requirements are much more involved than they were years ago. The variety of liquids being handled has increased along with temperatures and pressures. Today’s installations demand quiet, smooth running pumps with long life. The reliable 1600 pumps offer an economical solution to your liquid handling problems.

KEY FEATURES
• Capacities to 4200 GPM (954 m3/hr)
• Pressures to 520 Feet of Head (158 m)
• Temperatures to 300°F (149°C)

Back to top





Picture Details: Model 5800 Series, 2800 Series, 1800 Series
The Fairbanks Nijhuis single-stage horizontal split case pump offers long, reliable service with no maintenance. Designed for general liquid pumping and booster applications.

KEY FEATURES
• 100 to 75,000 GPM (22 to 17,034 m3/hr) capacities 20 to 700 feet heads (6 to 213 m)
• Markets served: Power plants, steel mills, chemical plants, paper mills, refineries, cooling and heating systems and water booster service
• High efficiency, low maintenance and quiet operation
• Smooth operation, balanced loading and locked-in-place rotating assembly
• Horizontal mounted pumps in discharge sizes from 2" to 36" (50 - 914 mm)in diameter
• Vertically mounted pumps in discharges sizes from 2 " to 14" (50 - 355 mm) in diameter
• Can be used with multiple types of drives
• Constructed out of cast iron, bronze, stainless steel or other machinable materials.
Wear rings for both the casing and impeller are available to provide a renewable surface.

Back to top





PVM Vertical multi-stage pumps
End Suction pump
Regenerative Turbine Pumps

KEY FEATURES
• Flow series: 1, 3, 5, 10, 15, 20, 33*, 45, 64, 90, 120, 150
• Flanged, NPT or grooved connections
• Cartridge Mechanical Seal - can be replaced easily without dismantling the pump
• Continuous-duty, best in class, high efficiency designs
• Heavy-duty cast motor bracket insures proper motor alignment
• High-thrust TEFC enclosure motor options
• Versatility in performance and design
• Retrofits easily in existing and new installations, reducing valuable downtime
• Lower operating costs
• Typical Applications Include:
o Commercial Pressure Boosting
o Boiler feed, Condensate Systems
o Agricultural and Commercial Irrigation
o Pulp, Paper and Lumber Mining
o Petrochemical: Refinery and Offshore Drilling
o Car and Truck Wash Systems
o Jockey Pump for Fire Protection

Back to top
